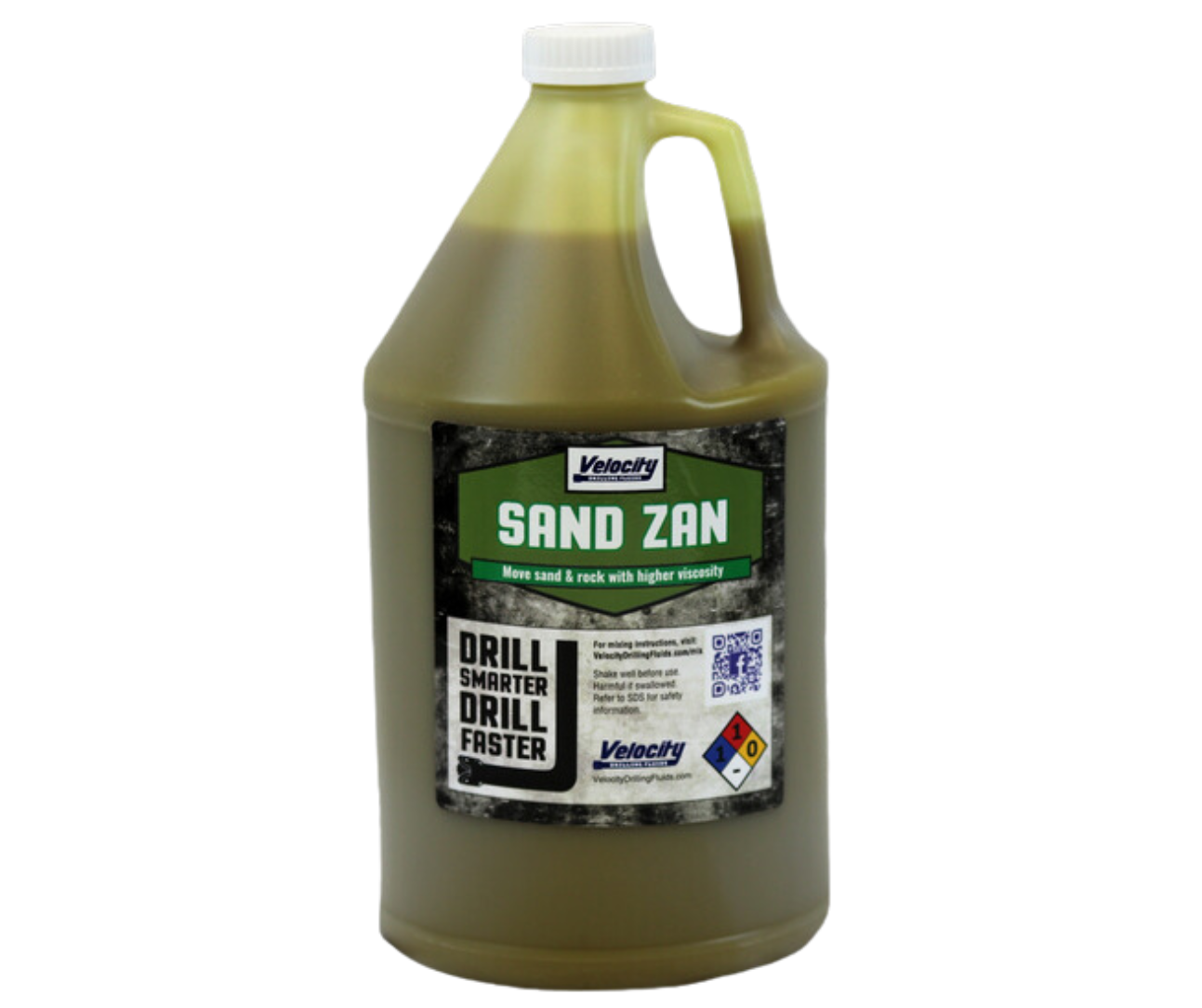

Sand Zan
Sand Zan is a 4.0 lb/gal active, high purity xanthan gum slurry. It is used to design low-solids fluids that have effective carrying and suspending properties. Sand Zan is effective in most water-based fluid applications for rheology modification, solids suspension, and improved hole cleaning.
Sand Zan is a 4.0 lb/gal active, high purity xanthan gum slurry. It is used to design low-solids fluids that have effective carrying and suspending properties. Sand Zan is effective in most water-based fluid applications for rheology modification, solids suspension, and improved hole cleaning.
Sand Zan is a 4.0 lb/gal active, high purity xanthan gum slurry. It is used to design low-solids fluids that have effective carrying and suspending properties. Sand Zan is effective in most water-based fluid applications for rheology modification, solids suspension, and improved hole cleaning.
ADVANTAGES
Readily disperses to enable mixing in low shear environments
Excellent stability in brines
Enhances gel strength and an effective viscosifier
Transports Larger cuttings, Gravel and cobble over long bores
Strengthens filer cake and improves bore stability
Effective over a wide pH range
PROPERTIES
Appearance Tan to light brown slurry
Specific Gravity 1.04 to 1.08
Density 8.67 to 9.01 lbs/gal
pH (1% soln. in water) 6.0 to 8.0
Flash Point >230°F (>110°C)
Solubility in Water Soluble
Active content 4.0 lbs/gal
APPLICATION
Designed to enhance gel strength of the drilling fluid for improved suspension and transporting of drill cuttings, gravel, and cobble on long bores. Sand Zan will perform effectively in fresh or saltwater.
MIXING
Treatment
1 Gallon of Sand Zan treats 500 gallons of water
Recommended Fluid Formulation sand and cobble (Per 500 Gal)
2 LBS SODA ASH
50 LBS GEL
NOTES:
Sand Zan can be added to enhance the suspension capability of the fluid. Sand Zan enhances the wall cake to keep the formation better isolated. Add soda ash at a rate of 1 LBS per 100 gallons to treat water prior to mixing other additives. Soda ash will enhance the yield of your additives.
